Hi all, I'm back on the case (thread ) with an update on progress..........
I'm getting on well with my household 'To-Do' List to keep 'she who must obeyed' happy before the festive days come upon us and have managed to do a lot of reading/interpreting the written word of the instructions from all the bits and pieces. It's a bit heavy going, but I'm seeking out the most important setting-up information from my Jeti DC-14 and the Axon gyro together with a bit of stuff from the Jeti REX7 receiver. I still haven't had my Rx. interface cable delivered yet and, therefore, can't update the firmware on both my 550 and the 700X. This means that I can't use all the telemetry stuff.
Next time I fly, I'd like to have everything working or at least more fine tuning details ready for implementation. Fingers crossed that it won't be too long.
Bye for now!
) with an update on progress..........I'm getting on well with my household 'To-Do' List to keep 'she who must obeyed' happy before the festive days come upon us and have managed to do a lot of reading/interpreting the written word of the instructions from all the bits and pieces. It's a bit heavy going, but I'm seeking out the most important setting-up information from my Jeti DC-14 and the Axon gyro together with a bit of stuff from the Jeti REX7 receiver. I still haven't had my Rx. interface cable delivered yet and, therefore, can't update the firmware on both my 550 and the 700X. This means that I can't use all the telemetry stuff.
Next time I fly, I'd like to have everything working or at least more fine tuning details ready for implementation. Fingers crossed that it won't be too long.
Bye for now!
Smoggie
Well-Known Member
You sound like a man after my own heart Phil. Once I have everything is working perfectly I get bored and have to find stuff to tweak and upgrade. My new project related to the 700X is to rewind the already stupidly powerful Align BL850MX motor. When I got my spare airframe it came with another BL850MX installed. I'd assumed that the motor like the airframe was new but the seller conveniently forgot to tell me that the motor had been transferred from his previous trex 700L. It's actually in excellent condition apart from the shaft which looks like someone has taken a Dremel to for some reason
The shafts aren't expensive but do require an Arbor Press to remove, so I used the excuse to buy both the shaft and the press! Application of brute force and ignorance successfully removed the shaft.

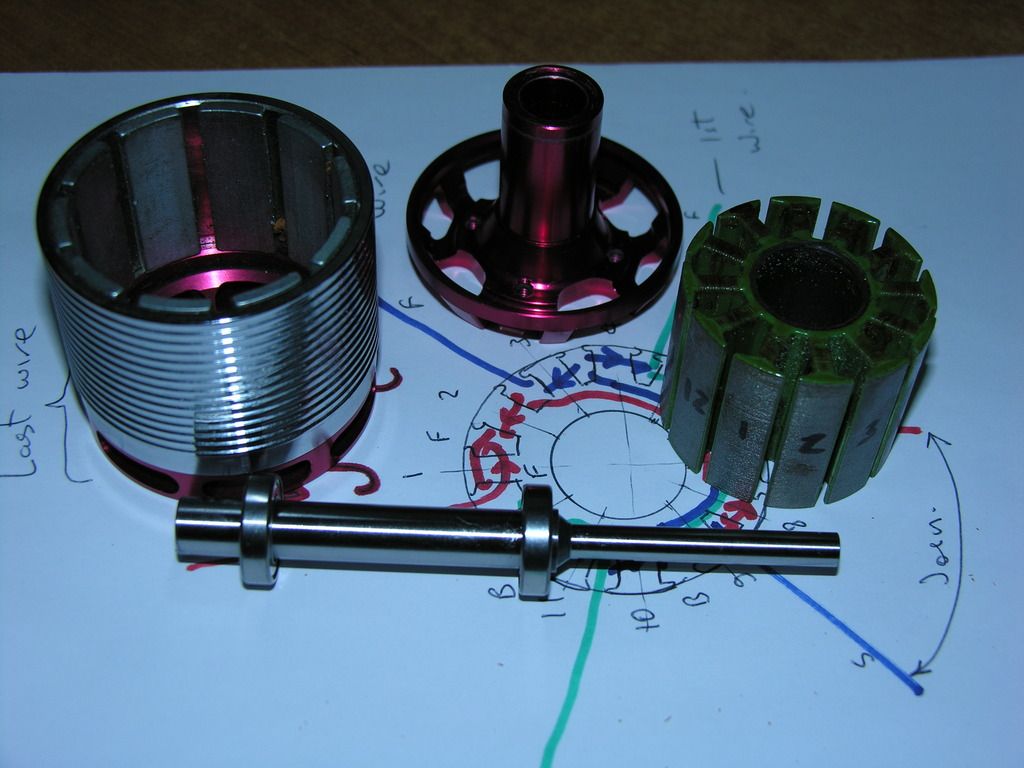

Then I got to thinking that while I had the motor apart I might have a go at the mystical art of brushless motor re-winding So that involved buying some 1.5mm copper magnet wire and other bits and bobs. I've re-wound smaller motors before but 1.5mm wire is hard to bend and I discovered needs some specialist tools to get tightly wound on the stator, so I've ordered those too.
Anyway, at the moment the motor is broken down to it's component parts, original copper windings removed and awaiting the special tools so I can start winding it again with the 1.5mm wire:
The jury is out on if I can ever get it working again but the attempt will keep me out of mischief for a little while.
The shafts aren't expensive but do require an Arbor Press to remove, so I used the excuse to buy both the shaft and the press! Application of brute force and ignorance successfully removed the shaft.Then I got to thinking that while I had the motor apart I might have a go at the mystical art of brushless motor re-winding
So that involved buying some 1.5mm copper magnet wire and other bits and bobs. I've re-wound smaller motors before but 1.5mm wire is hard to bend and I discovered needs some specialist tools to get tightly wound on the stator, so I've ordered those too.Anyway, at the moment the motor is broken down to it's component parts, original copper windings removed and awaiting the special tools so I can start winding it again with the 1.5mm wire:
The jury is out on if I can ever get it working again but the attempt will keep me out of mischief for a little while.
Heliman450
Well-Known Member
Hi Steve, sounds more like you're right into a LOT of mischief by choice I'd be more inclined to just buy another brand new motor and leave the special tools alone. What is it you're buying exactly and why did you feel the urge to rewind the motor?
From my side, I'm just catching up on stuff I should have done earlier in the year (my bad) and just convinced myself that it didn't matter at the time. I never got round to learning all the ins and outs of the DC-14 as it's primarily an aeroplane Tx. and I doubt that I'll ever need those features. However, the manual's written without separating the unwanted stuff so I just find myself reading and then realising that I don't understand anything of what they're saying. Read it again and then realise I don't need it anyway
Seriously, now that I have a new gyro to learn new stuff about I need to get it all straight in my head. I've already rewritten the Jeti instructions to include my DC-14 (not included in the enclosed instructions) as I missed something very important in the setting up and it took me a few days to find out the solution. All part of the fun, but could have been avoided if I'd got my finger out sooner. I also need to set up the 'Horizon' feature of the Axon and a couple of other things, too.
Back to work!
I'd be more inclined to just buy another brand new motor and leave the special tools alone. What is it you're buying exactly and why did you feel the urge to rewind the motor?From my side, I'm just catching up on stuff I should have done earlier in the year (my bad) and just convinced myself that it didn't matter at the time. I never got round to learning all the ins and outs of the DC-14 as it's primarily an aeroplane Tx. and I doubt that I'll ever need those features. However, the manual's written without separating the unwanted stuff so I just find myself reading and then realising that I don't understand anything of what they're saying. Read it again and then realise I don't need it anyway
Seriously, now that I have a new gyro to learn new stuff about I need to get it all straight in my head. I've already rewritten the Jeti instructions to include my DC-14 (not included in the enclosed instructions) as I missed something very important in the setting up and it took me a few days to find out the solution. All part of the fun, but could have been avoided if I'd got my finger out sooner. I also need to set up the 'Horizon' feature of the Axon and a couple of other things, too.
Back to work!
Smoggie
Well-Known Member
Rewinding can change the Kv of a motor and it can make the motor more powerful, more efficient and cooler running. The idea is that by careful hand winding with a single thick wire you get more copper and so less electrical resistance than a sweatshop factory/machine wound motor that usually use multiple thin filaments of wire for ease of winding.
In the case of the 850MX it turns out that the stock motor (unlike many Align motors) is not a all bad, so i dont expect to see a big improvement, but it's an interesting challenge! I'm winding the same number of turns as stock so the Kv will be the same. Increasing Kv for higher revs would have made for a more powerful motor but a higher revving motor would screw up the gearing.
In the case of the 850MX it turns out that the stock motor (unlike many Align motors) is not a all bad, so i dont expect to see a big improvement, but it's an interesting challenge! I'm winding the same number of turns as stock so the Kv will be the same. Increasing Kv for higher revs would have made for a more powerful motor but a higher revving motor would screw up the gearing.
Heliman450
Well-Known Member
So what is it you need as special tools to do it and where are you getting them from?
Smoggie
Well-Known Member
The hard part is bending the thick copper wire around the ends on the stator 'teeth' while keeping the wire nice and tightly packed against the stator. To do this the ideal tool is pliers that have parallel motion jaws which you need to grind down to be thin enough to fit in the gaps between the teeth. this is what the tool looks like:
The basic 'Klipex' pliers are available on ebay but I'll need to grind the jaws down.
The basic 'Klipex' pliers are available on ebay but I'll need to grind the jaws down.
Last edited:
Heliman450
Well-Known Member
Hi Steve, looks very interesting............ I'd like to see your video or photo sequence of the rewinding process. Not sure where the correct location is in the Forum but I'm sure you can come up with something
Smoggie
Well-Known Member
I'll stick something in the 'motors' sub forum.
I'm hoping the special pliers arrive today or tomorrow as we have a storm blowing in which is going to mean no flying for a few days. I could do with something to keep me busy rather than spending all of the Christmas period eating and drinking too much.
I'm hoping the special pliers arrive today or tomorrow as we have a storm blowing in which is going to mean no flying for a few days. I could do with something to keep me busy rather than spending all of the Christmas period eating and drinking too much.
Heliman450
Well-Known Member
Look forward to seeing it. Don't forget to let me know when it goes live.
Heliman450
Well-Known Member
Hi all,
I decided to continue this thread in the FBL gyro section as that's really where I'm at with it. See you over there Tuning B.D. Axon Gyro on my T-Rex 700X
Keep looking in and merry Xmas to all the viewers
I decided to continue this thread in the FBL gyro section as that's really where I'm at with it. See you over there Tuning B.D. Axon Gyro on my T-Rex 700X
